Iscar

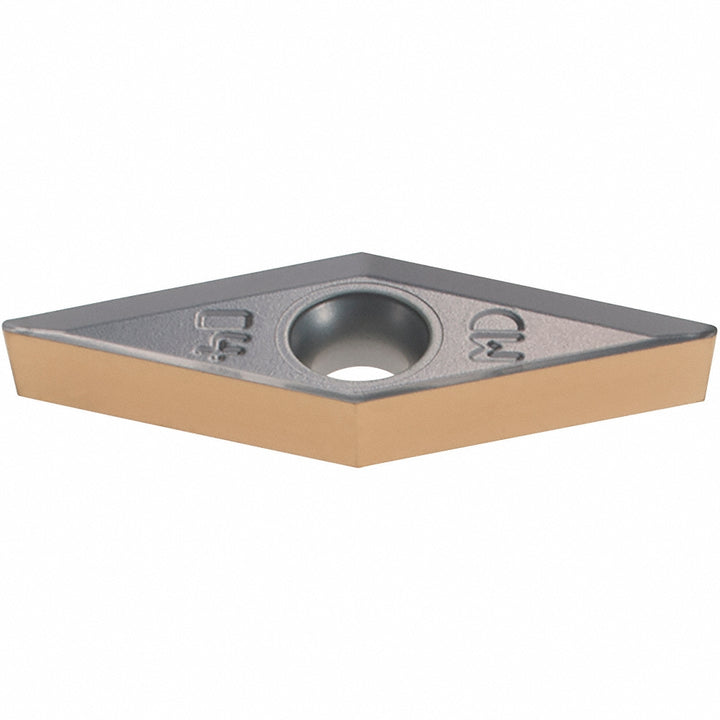

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5591958
MFR# 5591958ISO/ANSI# ISO 13399Series Isoturn
$25.73List $33.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/16
ShapeDiamond
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5591958 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated.
Specifications
Chip breakerMD
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1340
Included angle35.0
Inscribed circle in5/16
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code130304
Insert styleVCGT
Insert thickness in1/8
Iso codeISO 13399
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeG
