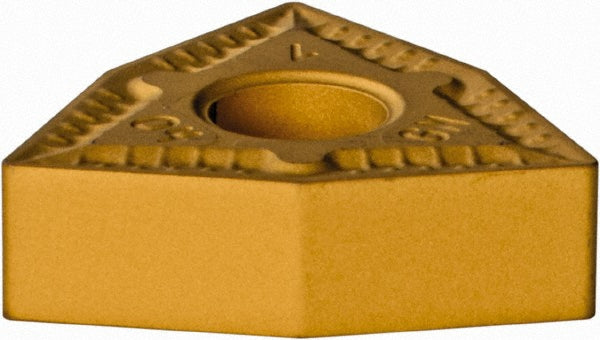

WNMG 431-GN Carbide Insert, Grade IC9250, TiCN - Iscar 5591986

Iscar

WNMG 431-GN Carbide Insert, Grade IC9250, TiCN - Iscar 5591986

MFR# Iscar-5591986ISO/ANSI# WNMG080404Cat# WNMG 431-GNSeries Isoturn

$15.36List $19.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC9250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5591986 is a WNMG 431-GN carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 431-GN
Iso insert codeWNMG080404
Iso size code080404
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 431-GN
Manufacturer gradeIC9250
Maximum depth of cut0.1770
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
