Iscar

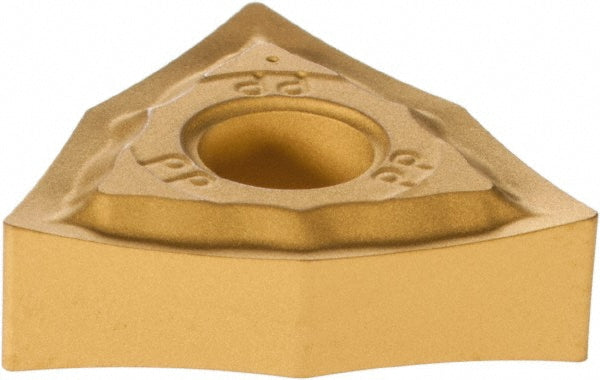

WNMG 431-PP Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5591996
MFR# 5591996ISO/ANSI# WNMG 431-PPCat# WNMG 431-PPSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5591996 is a WNMG 431-PP solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3430
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 431-PP
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG 431-PP
Manufacturer gradeIC9250
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
