Iscar

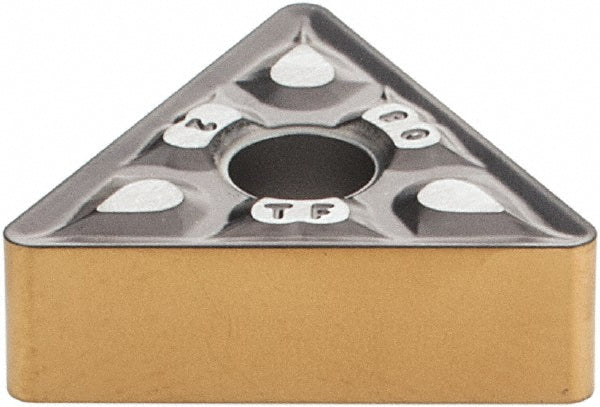

ISO 13399 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 5592001
MFR# 5592001ISO/ANSI# ISO 13399Series Isoturn
$13.33List $17.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5592001 is a ISO 13399 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for m, p, s.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC807
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialM; P; S
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
