Iscar

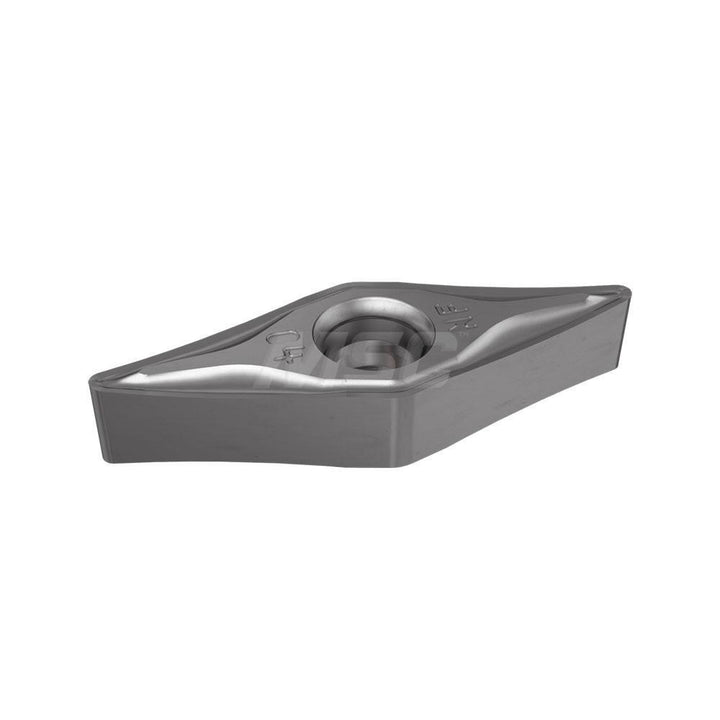

ISO 13399 Cermet Insert, Grade IC530N, TiCN - Iscar 5592169
MFR# 5592169ISO/ANSI# ISO 13399Series Isoturn
$17.47List $22.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC9/32
ShapeDiamond
GradeIC530N
MaterialCermet
CoatingTiCN
Description
The Iscar 5592169 is a ISO 13399 cermet indexable insert, grade IC530N, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Included angle35.0
Inscribed circle in9/32
Insert holding methodClamp; Pin
Insert length0.4880
Insert materialCermet
Insert shapeDiamond
Insert size code2.5-1
Insert styleVNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC530N
Maximum depth of cut0.0790
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
