Iscar

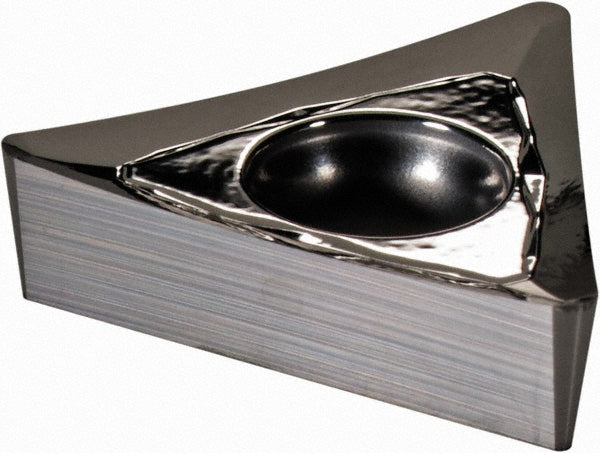

TCGT 3-2-AS Solid Carbide Insert, Grade IC20 - Iscar 5592359
MFR# 5592359ISO/ANSI# TCGT 3-2-ASCat# TCGT 3-2-ASSeries Isoturn
$22.22List $28.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5592359 is a TCGT 3-2-AS solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1730
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6500
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code3-2
Insert styleTCGT
Insert thickness in5/32
Iso codeTCGT 3-2-AS
Length range0.6500 - 0.7000
Manufacturers catalog numberTCGT 3-2-AS
Manufacturer gradeIC20
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
