Iscar

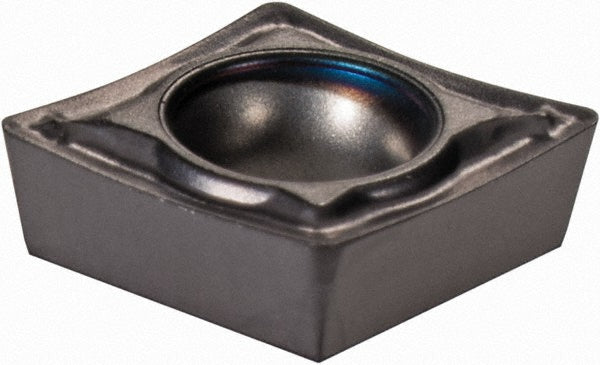

CPGT 2-1-SM Solid Carbide Insert, Grade IC907, TiN - Iscar 5592522
MFR# 5592522ISO/ANSI# CPGT 2-1-SMCat# CPGT 2-1-SMSeries Isoturn
$24.25List $31.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5592522 is a CPGT 2-1-SM solid carbide indexable insert, grade IC907, TiN coated.
Specifications
Chip breakerSM
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCPGT
Insert thickness in3/32
Iso codeCPGT 2-1-SM
Length range0.0000 - 0.3000
Manufacturers catalog numberCPGT 2-1-SM
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeG
