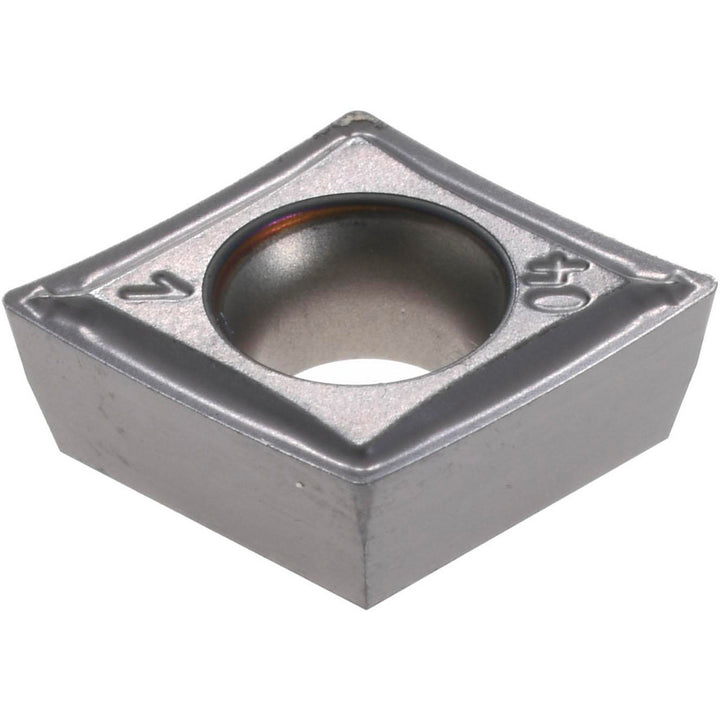

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5592532

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5592532

MFR# 5592532ISO/ANSI# CPGT09T304Series Isoturn

$27.61List $35.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5592532 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.

Specifications

Ansi insert codeCPGT3-1
Ansi size code3-1
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3740
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-1
Insert styleCPGT
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeCPGT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1378
RakePositive
Relief angle11
Side clearancePositive
StandardsISO 13399
Tolerance codeG
