Iscar

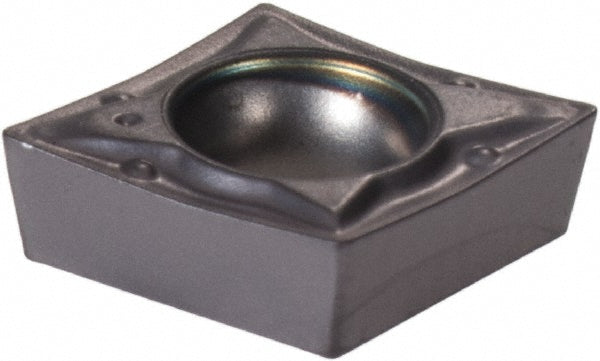

CCMT 2-0-PF Solid Carbide Insert, Grade IC907, TiN - Iscar 5592941
MFR# 5592941ISO/ANSI# CCMT 2-0-PFCat# CCMT 2-0-PFSeries Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5592941 is a CCMT 2-0-PF solid carbide indexable insert, grade IC907, TiN coated.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 2-0-PF
Length range0.0000 - 0.3000
Manufacturers catalog numberCCMT 2-0-PF
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use toolYes
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
