Iscar
CCMT32.51 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5592971
MFR# 5592971ISO/ANSI# CCMT32.51Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description

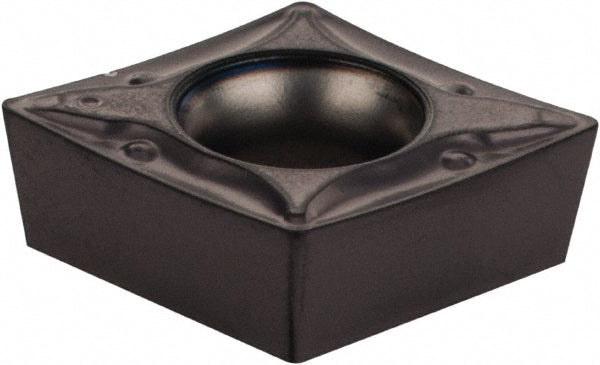

The Iscar 5592971 is a CCMT32.51 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.51
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1378
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
