Iscar

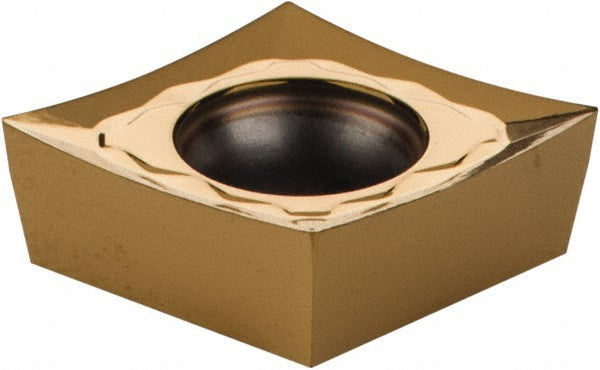

CCGT32.50.5 Solid Carbide Insert, Grade IC520, TiCN - Iscar 5593787
MFR# 5593787ISO/ANSI# CCGT32.50.5Series Isoturn
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5593787 is a CCGT32.50.5 solid carbide indexable insert, grade IC520, TiCN coated. Suited for m.
Specifications
Chip breakerAS
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT32.50.5
Length range0.3000 - 0.4000
Manufacturer gradeIC520
Maximum depth of cut0.0984
Primary workpiece materialM
RakePositive
Relief angle7
Secondary workpiece materialN; S
StandardsISO 13399
Tolerance codeG
