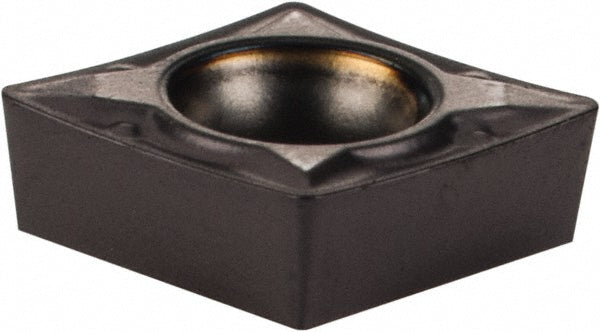

CCMT21.51 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5594731
MFR# 5594731ISO/ANSI# CCMT21.51Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5594731 is a CCMT21.51 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT21.51
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0984
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
