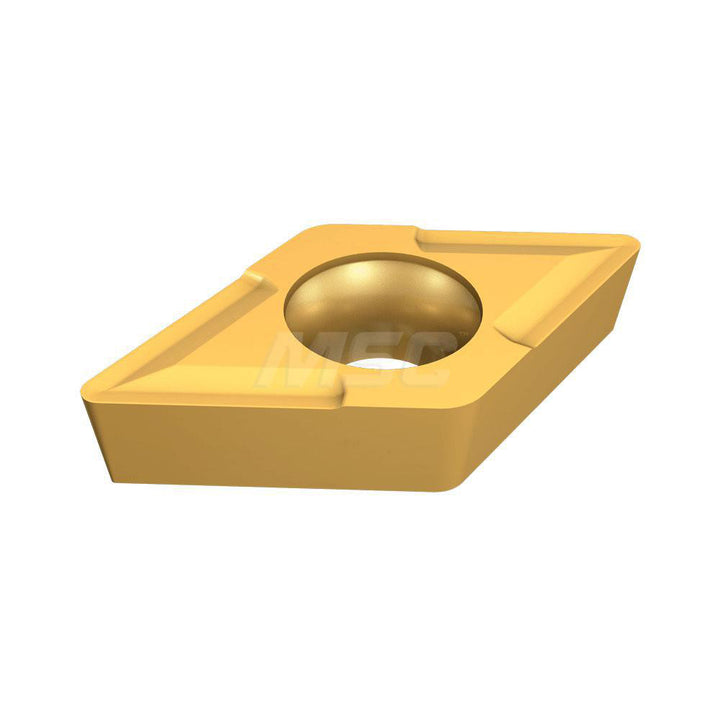

ISO 13399 Carbide Insert, Grade IC320, TiCN - Iscar 5594887
MFR# 5594887ISO/ANSI# ISO 13399Series Isoturn
$32.92List $41.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC320
MaterialCarbide
CoatingTiCN
Description
The Iscar 5594887 is a ISO 13399 carbide indexable insert, grade IC320, TiCN coated. Suited for universal.
Specifications
Ansi size code3-1
Chip breakerAS
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3-1
Insert styleDCGT
Insert thickness in5/32
Iso codeISO 13399
Iso size code11T304
Length range0.4000 - 0.5000
Manufacturer gradeIC320
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeG
