Iscar

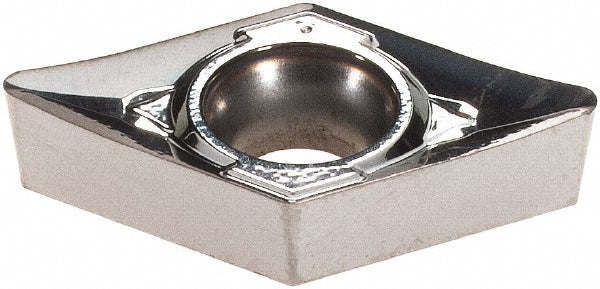

ISO 13399 Solid Carbide Insert, Grade IC320, TiN - Iscar 5594897
MFR# 5594897ISO/ANSI# ISO 13399Series Isoturn
$27.45List $35.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC320
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5594897 is a ISO 13399 solid carbide indexable insert, grade IC320, TiN coated. Suited for universal.
Specifications
ChipbreakerAS
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-2
Insert styleDCGT
Iso codeISO 13399
Length0.4567
Manufacturer gradeIC320
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
ShapeDiamond
StandardsISO 13399
Thickness in5/32
