Iscar

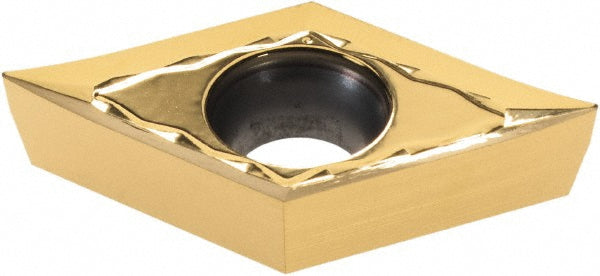

ISO 13399 Carbide Insert, Grade IC520, TiCN - Iscar 5594947
MFR# 5594947ISO/ANSI# ISO 13399Series Isoturn
$23.97List $30.20
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC520
MaterialCarbide
CoatingTiCN
Description
The Iscar 5594947 is a ISO 13399 carbide indexable insert, grade IC520, TiCN coated. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code3-0
Insert styleDCGT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC520
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
