Iscar

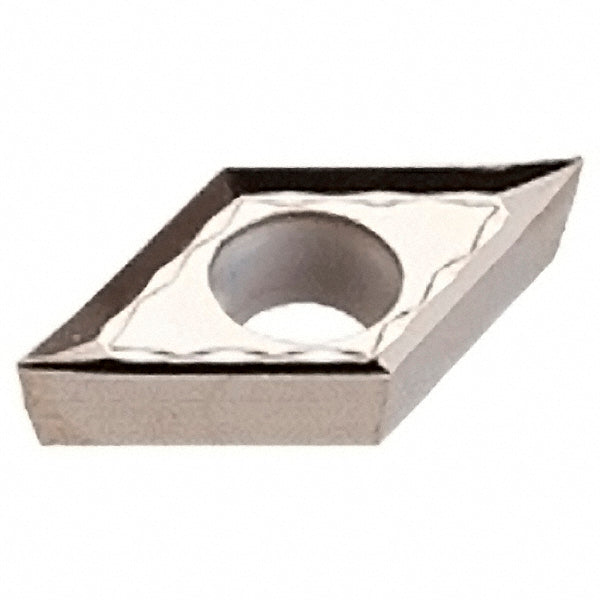

ISO 13399 Solid Carbide Insert, Grade IC520, TiCN - Iscar 5594967
MFR# 5594967ISO/ANSI# ISO 13399Series Isoturn
$23.47List $30.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC520
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5594967 is a ISO 13399 solid carbide indexable insert, grade IC520, TiCN coated. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3051
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-0
Insert styleDCGT
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC520
Maximum depth of cut0.0787
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
