Iscar

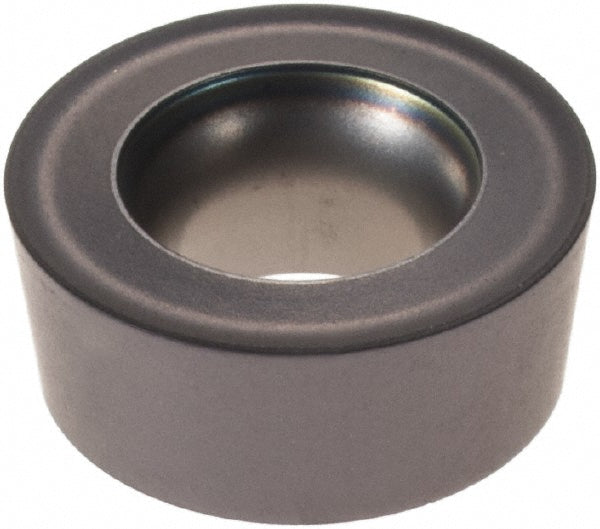

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5595021
MFR# 5595021ISO/ANSI# ISO 13399Series RCMT
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5595021 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Hole diameter0.2165
Included angle360
Inscribed circle0.4728
Insert handNeutral
Insert height0.1875
Insert holding methodClamp; Pin
Insert length0.4728
Insert materialCarbide
Insert size code1204
Insert styleRCMT
Iso codeISO 13399
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.2364
Msc manufacturer numberRCMT 1204M0-14
Number of cutting edges4
Primary workpiece materialUniversal
RakePositive
Relief angle7
ShapeRound
Side length0.4728
StandardsRCMT 1204M0-14
Thickness in3/16
Width0.4728
