Iscar

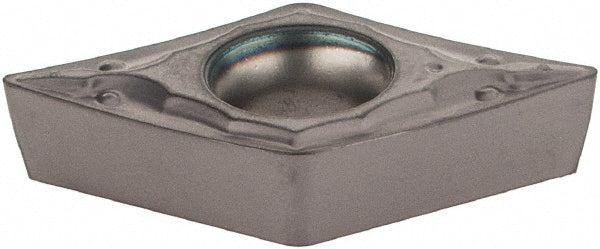

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5595051
MFR# 5595051ISO/ANSI# ISO 13399Series Isoturn
$20.00List $25.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5595051 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
