Iscar

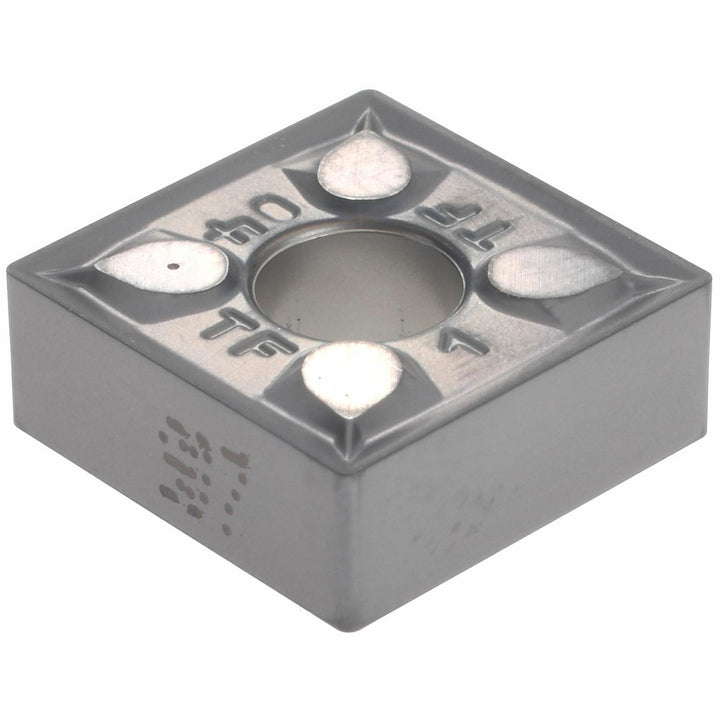

SNMG431 Carbide Insert, Grade IC907, TiAlN - Iscar 5596001
MFR# 5596001ISO/ANSI# SNMG120404Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5596001 is a SNMG431 carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Ansi insert codeSNMG431
Ansi size code431
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.2030
Included angle90
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeS - Square
Insert size code431
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG431
Iso insert codeSNMG120404
Iso size code120404
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1575
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
