Iscar

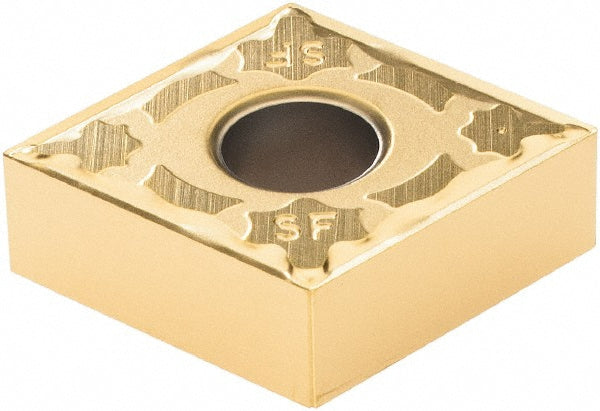

ISO 13399 Carbide Insert, Grade IC507, TiCN - Iscar 5596288
MFR# 5596288ISO/ANSI# CNGG120402Series Isoturn
$30.07List $37.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC507
MaterialCarbide
CoatingTiCN
Description
The Iscar 5596288 is a ISO 13399 carbide indexable insert, grade IC507, TiCN coated. Suited for universal.
Specifications
Ansi insert codeCNGG430.5
Ansi size code430.5
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius0.0079
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code430
Insert styleCNGG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNGG120402
Iso size code120402
Length range0.5000 - 0.6000
Manufacturer gradeIC507
Material gradeSubmicron
Maximum depth of cut0.0787
Primary workpiece materialUniversal
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
