Iscar

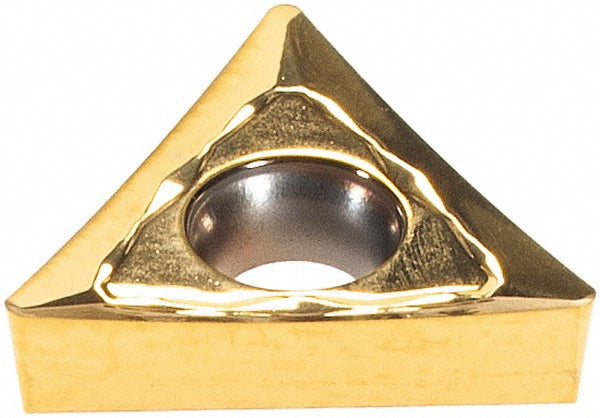

TCGT 2-1-AS Solid Carbide Insert, Grade IC520, TiCN - Iscar 5597048
MFR# 5597048ISO/ANSI# TCGT 2-1-ASCat# TCGT 2-1-ASSeries Isoturn
$23.47List $30.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC520
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5597048 is a TCGT 2-1-AS solid carbide indexable insert, grade IC520, TiCN coated. Suited for universal.
Specifications
Chip breakerAS
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4330
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code2-1
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT 2-1-AS
Length range0.4000 - 0.5000
Manufacturers catalog numberTCGT 2-1-AS
Manufacturer gradeIC520
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeG
