Iscar

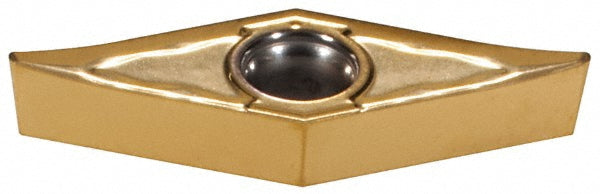

ISO 13399 Solid Carbide Insert, Grade IC520, TiCN - Iscar 5597921
MFR# 5597921ISO/ANSI# ISO 13399Series Isoturn
$31.27List $40.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC520
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5597921 is a ISO 13399 solid carbide indexable insert, grade IC520, TiCN coated. Suited for m.
Specifications
Chip breakerAS
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1140
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code221
Insert styleVCGT
Insert thickness in1/8
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC520
Maximum depth of cut0.1180
Primary workpiece materialM
RakePositive
Relief angle7
Secondary workpiece materialN; S
StandardsISO 13399
Stocking categoryD
Tolerance codeG
