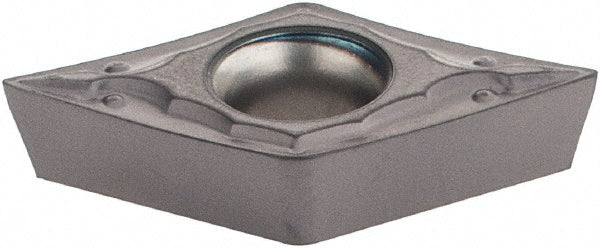

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5598832
MFR# 5598832ISO/ANSI# ISO 13399Series Isoturn
$19.65List $25.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5598832 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.1730
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4570
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-0
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0980
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
