Iscar

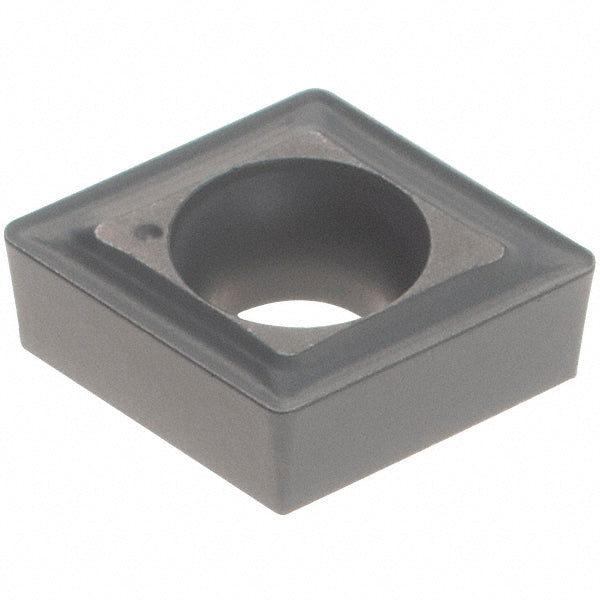

ISO 13399 Solid Carbide Insert, Grade IC428, TiC - Iscar 5598862
MFR# 5598862ISO/ANSI# ISO 13399Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC428
MaterialSolid Carbide
CoatingTiC
Description
The Iscar 5598862 is a ISO 13399 solid carbide indexable insert, grade IC428, TiC coated. Suited for cast iron, hard material, steel.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC428
Maximum depth of cut0.0984
Primary workpiece materialCast Iron; Hard Material; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
