Iscar

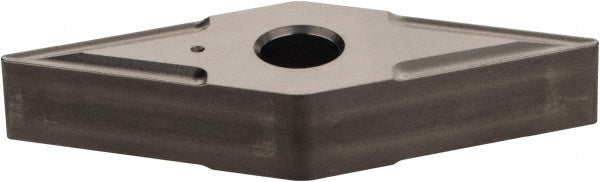

Diamond 3/8" IC Cermet Insert, Grade IC30N - Iscar 5599442
MFR# 5599442
$21.52List $27.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC30N
MaterialCermet
Description
The Iscar 5599442 is a cermet indexable insert, grade IC30N. Suited for h, m, p.
Specifications
Chip breakerG
Clearance codeN
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert materialCermet
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Manufacturer gradeIC30N
Primary workpiece materialH; M; P
Relief angle0
Stocking categoryD
Tolerance codeM
