Iscar

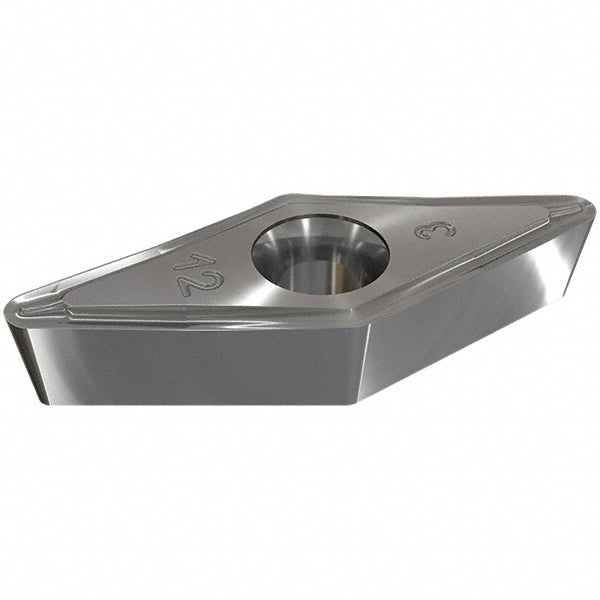

VCMT 221-SM Carbide Insert, Grade IC806, AlTiN - Iscar 5599761
MFR# 5599761ISO/ANSI# VCMT 221-SMSeries Isoturn
$24.09List $30.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC806
MaterialCarbide
CoatingAlTiN
Description
The Iscar 5599761 is a VCMT 221-SM carbide indexable insert, grade IC806, AlTiN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1140
Included angle35
Inscribed circle in1/4
Insert handRight Hand
Insert length0.4370
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 221-SM
Length range0.4000 - 0.5000
Manufacturers catalog number5599761
Manufacturer gradeIC806
Maximum depth of cut0.1180
Multi use applicationTurning
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
