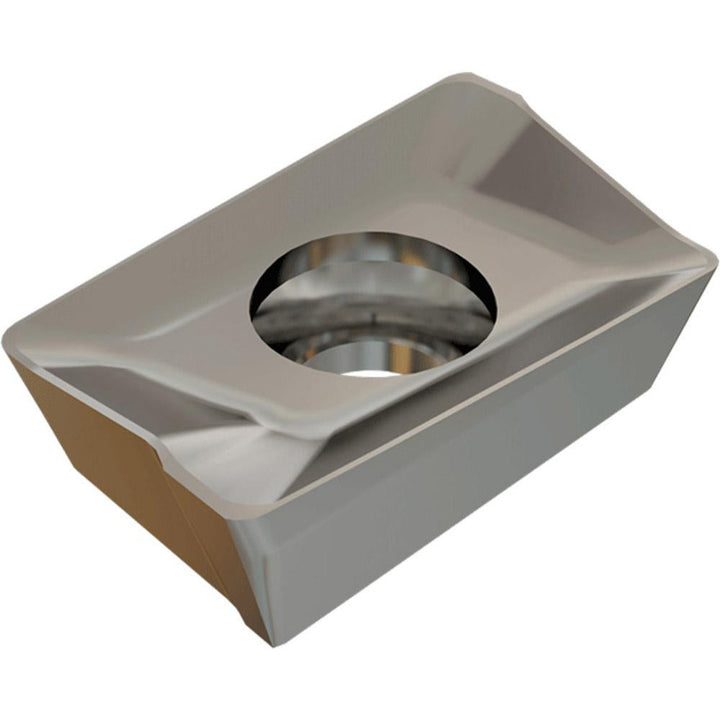

APKT 1003PDR-HM Solid Carbide Insert, Grade IC20 - Iscar 5600047
MFR# 5600047ISO/ANSI# APKT 1003PDR-HMCat# APKT 1003PDR-HM IC20Series HELIMILL
$16.79List $21.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5600047 is a APKT 1003PDR-HM solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeAPKT 1003PDR-HM IC20
Chip breakerHM
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR-HM IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeC2; C3
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2640
