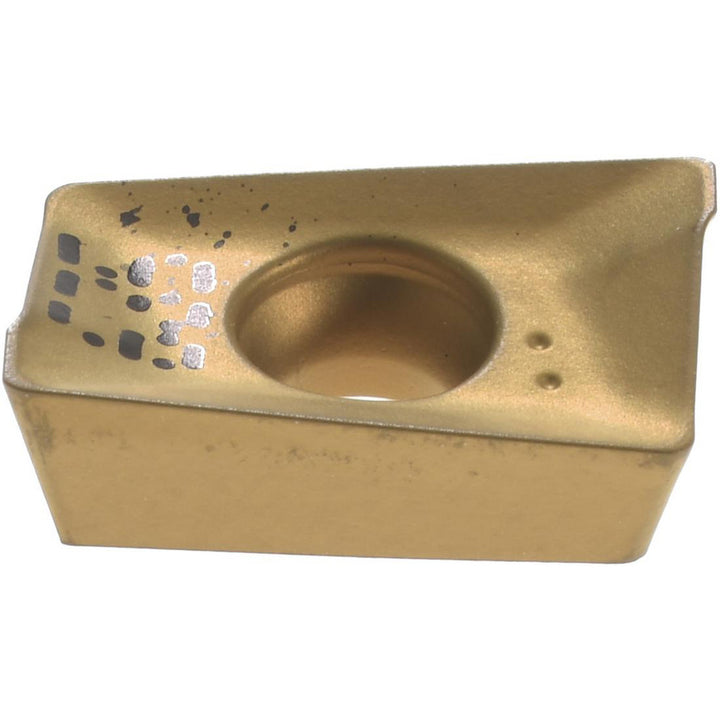

APKT 1003PDR-HM Solid Carbide Insert, Grade IC635, TiN - Iscar 5600048

Iscar

APKT 1003PDR-HM Solid Carbide Insert, Grade IC635, TiN - Iscar 5600048

MFR# 5600048ISO/ANSI# APKT 1003PDR-HMCat# APKT 1003PDR-HM IC635Series HELIMILL

$20.61List $26.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC635
MaterialSolid Carbide
CoatingTiN

Description

The Iscar 5600048 is a APKT 1003PDR-HM solid carbide indexable insert, grade IC635, TiN coated. Suited for steel, stainless steel.

Specifications

Ansi codeAPKT 1003PDR-HM IC635
Chip breakerHM
Coating finishTiN
Coating processCVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR-HM IC635
Manufacturer gradeIC635
Material applicationSteel; Stainless Steel
Material gradeC5
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2640
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
