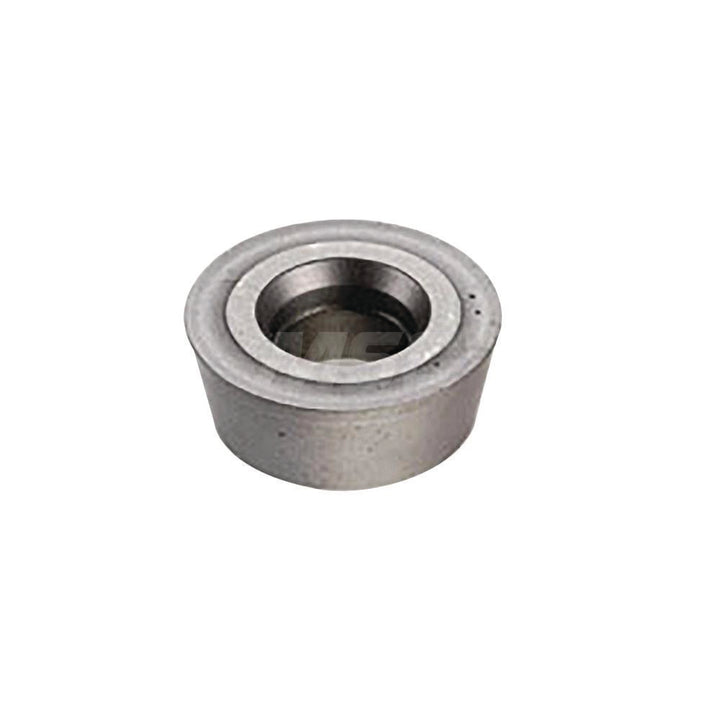

RPMT 120400 Solid Carbide Insert, Grade IC20 - Iscar 5600085

Iscar

RPMT 120400 Solid Carbide Insert, Grade IC20 - Iscar 5600085

MFR# 5600085ISO/ANSI# RPMT 120400Cat# RPMT 43 IC20Series ROUNDMILL

$9.54List $12.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
GradeIC20
MaterialSolid Carbide

Description

The Iscar 5600085 is a RPMT 120400 solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeRPMT 43 IC20
Coating processUncoated
Corner radius in1/4
Cutting edge effective length0.5000
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size4
Insert size code43
Insert styleRPMT
Iso codeRPMT 120400
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRPMT 43 IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.2500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
