Iscar

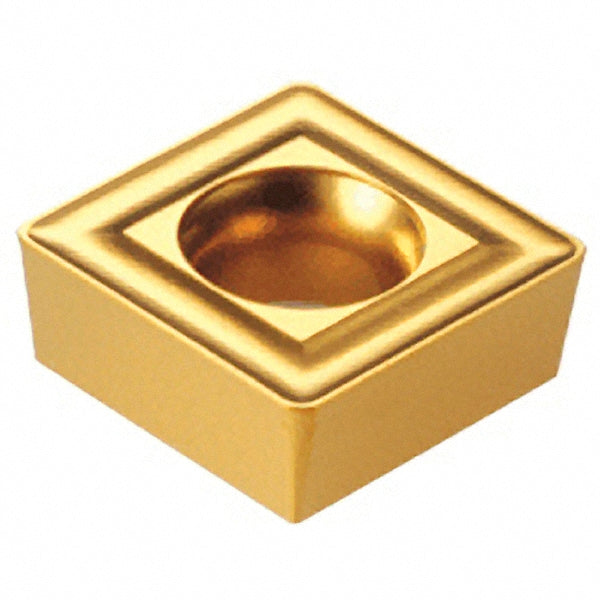

SCMT 09T308-19 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600096
MFR# 5600096ISO/ANSI# SCMT 09T308-19Series Isoturn
$14.97List $19.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC520M
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5600096 is a SCMT 09T308-19 solid carbide indexable insert, grade IC520M, TiCN coated. Suited for cast iron, stainless steel, steel.
Specifications
Chip breaker19
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Hole diameter0.1730
Included angle90.0
Inscribed circle0.3748
Insert materialSolid Carbide
Insert shapeSquare
Insert size code3-2
Insert styleSCMT
Insert thickness0.1563
Iso codeSCMT 09T308-19
Manufacturer gradeIC520M
Maximum depth of cut0.1969
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in3/8
