Iscar

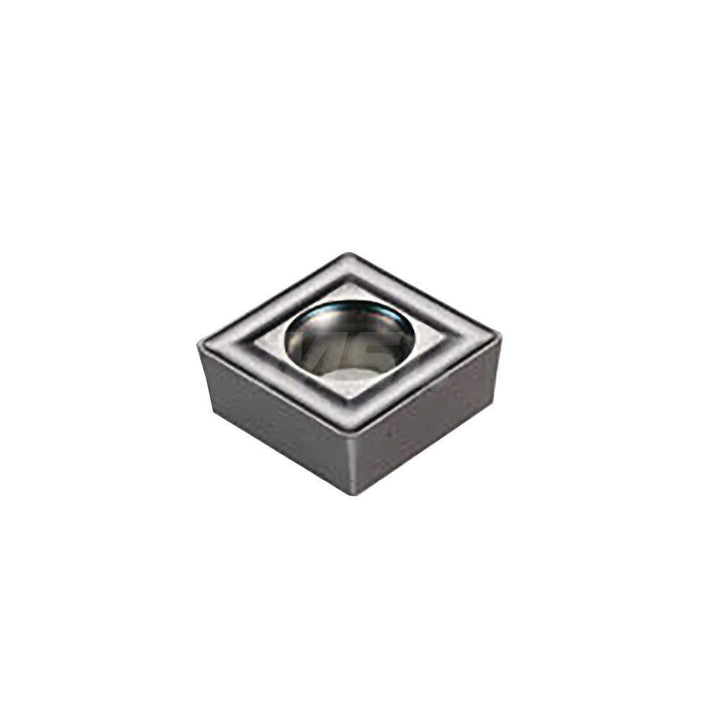

SCMT 120408-19 Solid Carbide Insert, Grade IC50M - Iscar 5600101
MFR# 5600101ISO/ANSI# SCMT 120408-19Cat# SCMT 432-19 IC50MSeries Isoturn
$16.29List $20.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC50M
MaterialSolid Carbide
Description
The Iscar 5600101 is a SCMT 120408-19 solid carbide indexable insert, grade IC50M. Suited for steel, stainless steel.
Specifications
Ansi codeSCMT 432-19 IC50M
Chip breaker19
Coating processUncoated
Corner radius in1/32
Cutter series compatibilitySS.C.
Cutting edge effective length0.4685
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree90
Inscribed circle0.5000
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43219
Insert styleSCMT
Iso codeSCMT 120408-19
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSCMT 432-19 IC50M
Manufacturer gradeIC50M
Material applicationSteel; Stainless Steel
Material gradeC6
Maximum depth of cut0.3333
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in1/2
