Iscar

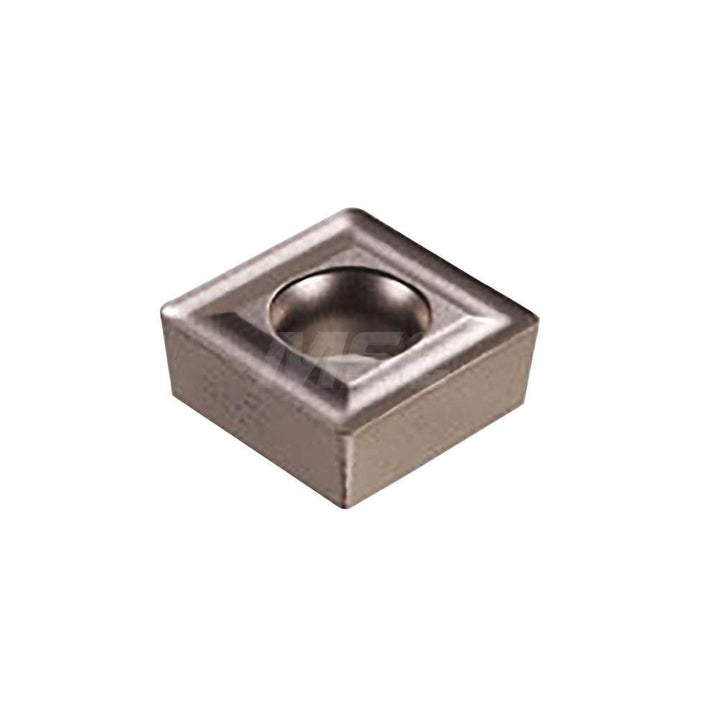

SCMT 120408-19 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600105
MFR# 5600105ISO/ANSI# SCMT 120408-19Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC520M
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5600105 is a SCMT 120408-19 solid carbide indexable insert, grade IC520M, TiCN coated. Suited for cast iron, stainless steel, steel.
Specifications
Chip breaker19
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Hole diameter0.2170
Included angle90.0
Inscribed circle0.5000
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness0.1874
Iso codeSCMT 120408-19
Manufacturer gradeIC520M
Maximum depth of cut0.3150
Primary workpiece materialCast Iron; Stainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in1/2
