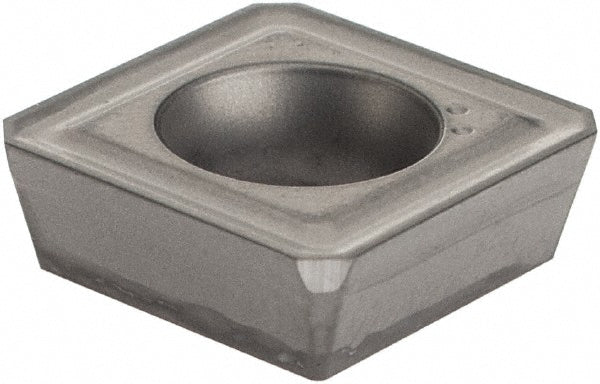

SDMT 0903AD-N Solid Carbide Insert, Grade IC20 - Iscar 5600121

Iscar

SDMT 0903AD-N Solid Carbide Insert, Grade IC20 - Iscar 5600121

MFR# 5600121ISO/ANSI# SDMT 0903AD-NCat# SDMT 32AD-N IC20Series ISCARMILL

$12.01List $15.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC20
MaterialSolid Carbide

Description

The Iscar 5600121 is a SDMT 0903AD-N solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeSDMT 32AD-N IC20
Chip breakerN
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityE45
Cutting edge effective length0.3748
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size3
Insert size code32
Insert styleSDMT
Iso codeSDMT 0903AD-N
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT 32AD-N IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeC2; C3
Maximum depth of cut0.2200
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
