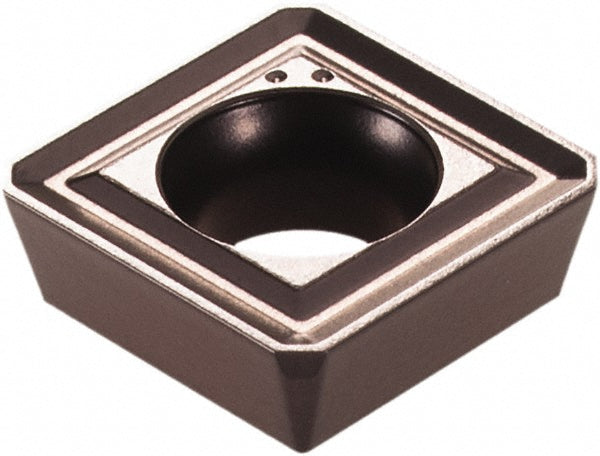

SDMT 0903AD-N Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600124

Iscar

SDMT 0903AD-N Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600124

MFR# 5600124ISO/ANSI# SDMT 0903AD-NCat# SDMT 32AD-N IC520MSeries ISCARMILL

$14.50List $18.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600124 is a SDMT 0903AD-N solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeSDMT 32AD-N IC520M
Chip breakerN
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityE45
Cutting edge effective length0.3748
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size3
Insert size code32
Insert styleSDMT
Iso codeSDMT 0903AD-N
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT 32AD-N IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2200
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
