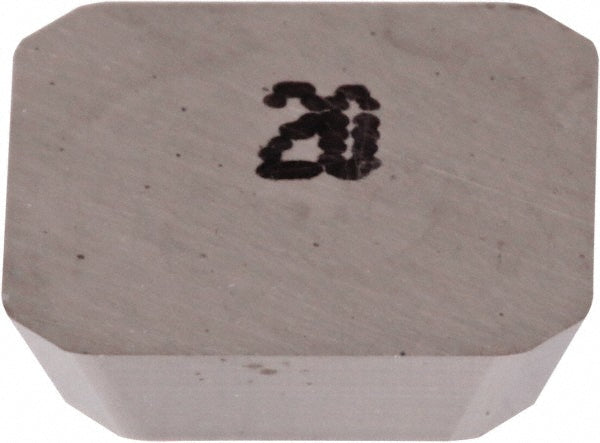

SEKN 1203AFFN Solid Carbide Insert, Grade IC20 - Iscar 5600135

Iscar

SEKN 1203AFFN Solid Carbide Insert, Grade IC20 - Iscar 5600135

MFR# 5600135ISO/ANSI# SEKN 1203AFFNCat# SEK 42AFFN IC20Series ISCARMILL

$14.11List $18.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC20
MaterialSolid Carbide

Description

The Iscar 5600135 is a SEKN 1203AFFN solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeSEK 42AFFN IC20
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.5000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEK
Iso codeSEKN 1203AFFN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEK 42AFFN IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
