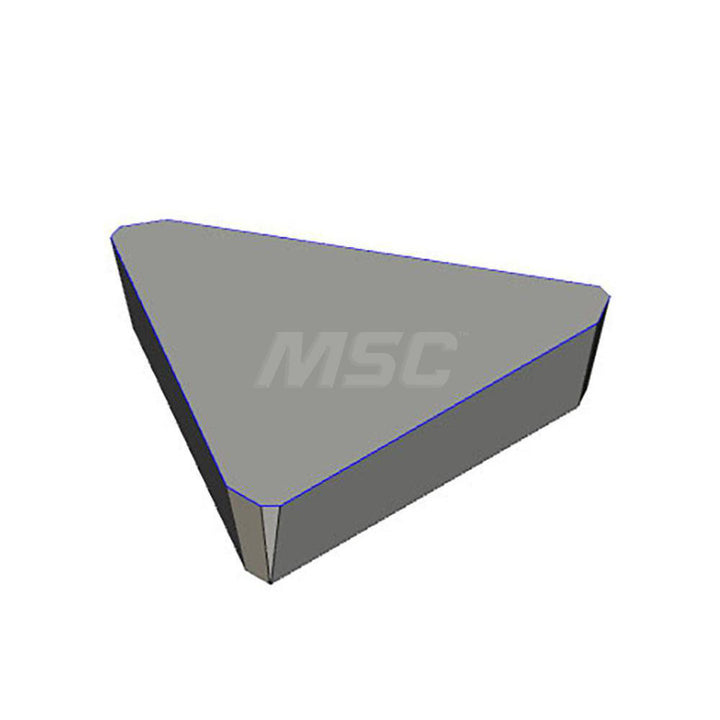

TPKN 2204PDTR Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600413

Iscar

TPKN 2204PDTR Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600413

MFR# 5600413ISO/ANSI# TPKN 2204PDTRCat# TPK 43PDTR IC520MSeries ISCARMILL

$25.97List $33.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600413 is a TPKN 2204PDTR solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeTPK 43PDTR IC520M
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityF90
Cutting edge effective length0.8661
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size4
Insert size code43
Insert styleTPK
Iso codeTPKN 2204PDTR
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPK 43PDTR IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.8661
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
