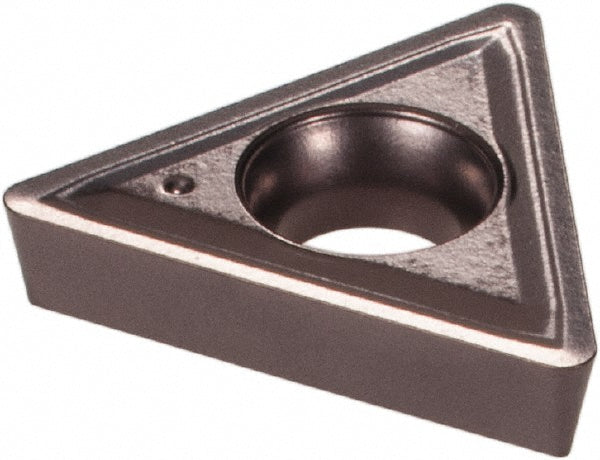

TPMT 160308 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600418

Iscar

TPMT 160308 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600418

MFR# 5600418ISO/ANSI# TPMT 160308Cat# TPMT 322 IC520MSeries Isoturn

$18.32List $23.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600418 is a TPMT 160308 solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeTPMT 322 IC520M
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityE30; E45
Cutting edge effective length0.6185
Cutting edge styleHoned
Hole diameter0.1693
Included angle degree60
Inscribed circle0.3748
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code322
Insert styleTPMT
Iso codeTPMT 160308
Length0.6500
Length range0.6500 to 0.7000
Manufacturers catalog numberTPMT 322 IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6500
