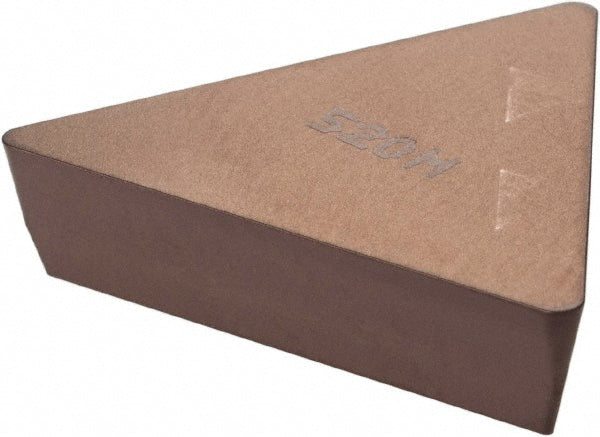

TPUN 220408 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600429

Iscar

TPUN 220408 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600429

MFR# 5600429ISO/ANSI# TPUN 220408Cat# TPU 432 IC520MSeries ISCARMILL

$18.09List $23.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600429 is a TPUN 220408 solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeTPU 432 IC520M
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF90
Cutting edge effective length0.8346
Cutting edge styleHoned
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size4
Insert size code432
Insert styleTPU
Iso codeTPUN 220408
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPU 432 IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.8346
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle11
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
