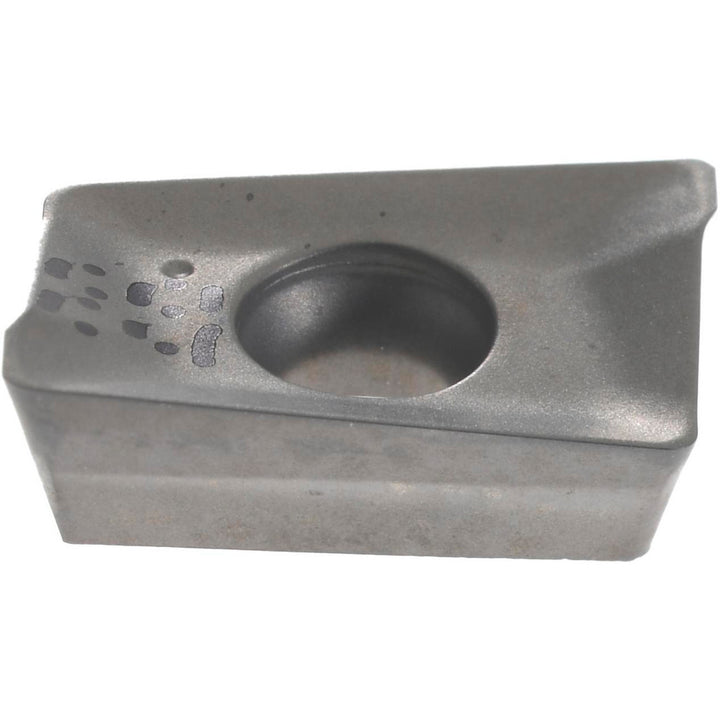

APKT 1003PDR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600493
MFR# 5600493ISO/ANSI# APKT 1003PDR-HMCat# APKT 1003PDR-HM IC28Series HELIMILL
$16.79List $21.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5600493 is a APKT 1003PDR-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeAPKT 1003PDR-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2640
