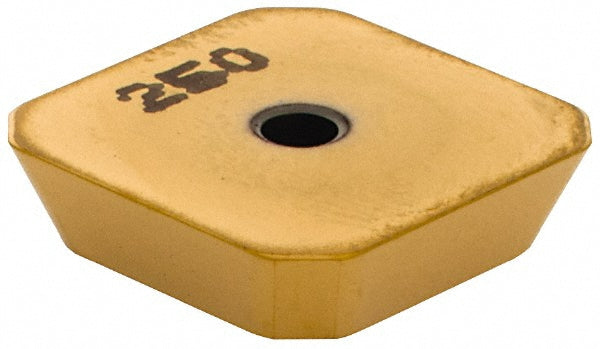

SEKN 1203AFTN Solid Carbide Insert, Grade IC250, TiCN - Iscar 5600505
MFR# 5600505ISO/ANSI# SEKN 1203AFTNCat# SEK 42AFTN IC250Series ISCARMILL
$18.57List $23.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5600505 is a SEKN 1203AFTN solid carbide indexable insert, grade IC250, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeSEK 42AFTN IC250
Chip breakerFlat Top
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEK
Iso codeSEKN 1203AFTN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEK 42AFTN IC250
Manufacturer gradeIC250
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
