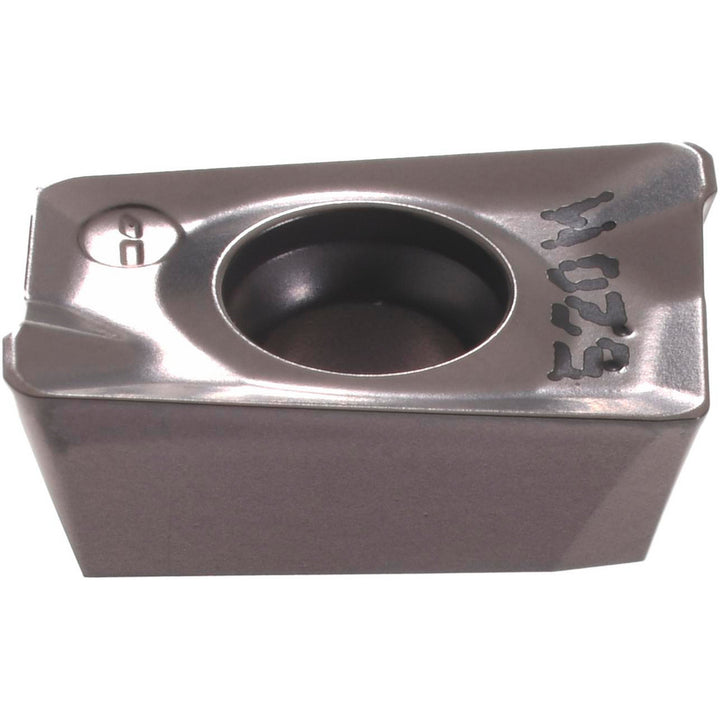

ADKT 1505PDR-HM Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5600513
MFR# 5600513ISO/ANSI# ADKT 1505PDR-HMCat# ADKT 1505PDR-HM IC520MSeries HELIMILL
$22.88List $29.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC520M
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5600513 is a ADKT 1505PDR-HM solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi codeADKT 1505PDR-HM IC520M
Chip breakerHM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDR-HM
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR-HM IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3770
