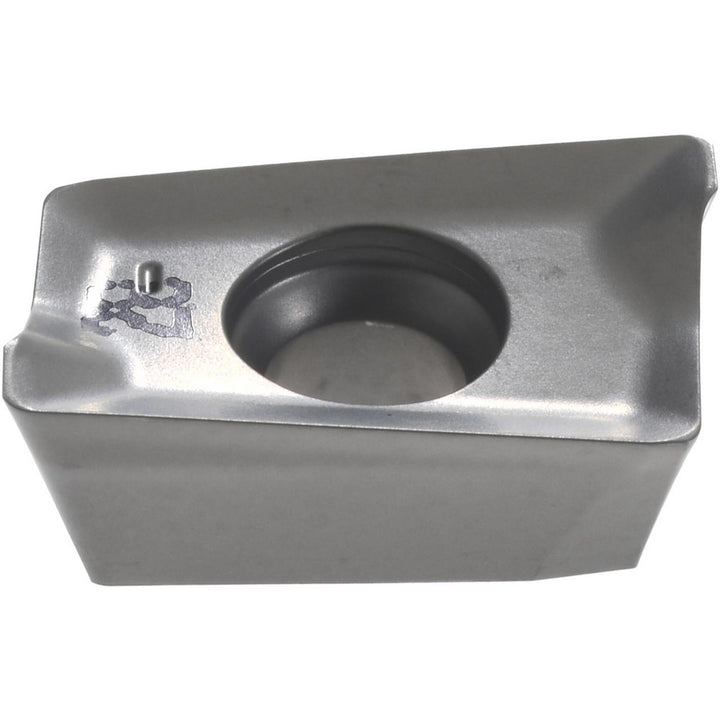

ADKR 1505PDR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600609
MFR# 5600609ISO/ANSI# ADKR 1505PDR-HMCat# ADKR 1505PDR-HM IC28Series HELIMILL
$18.81List $24.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5600609 is a ADKR 1505PDR-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeADKR 1505PDR-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5550
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKR
Iso codeADKR 1505PDR-HM
Length0.6280
Length range0.6000 to 0.6500
Manufacturers catalog numberADKR 1505PDR-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width0.3780
