Iscar

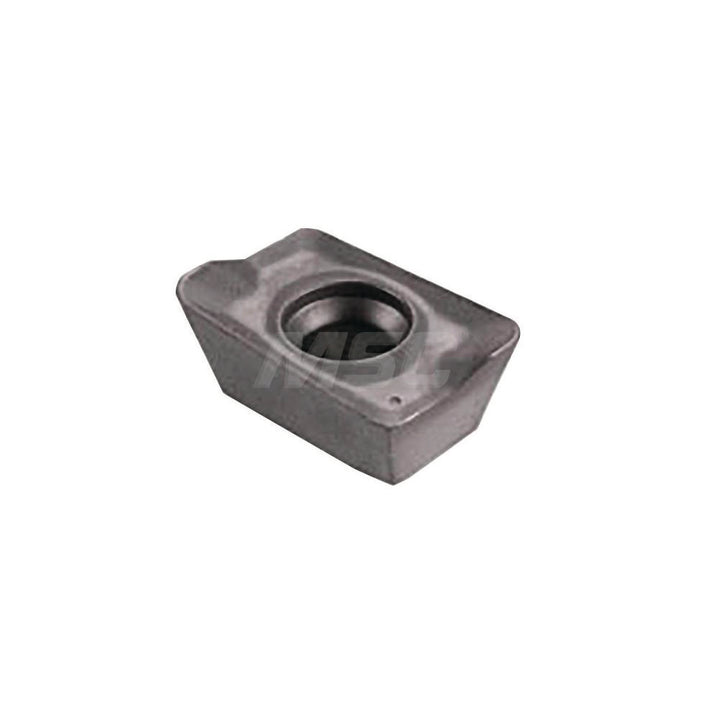

ADKT 150516R-HM Solid Carbide Insert, Grade IC28 - Iscar 5600621
MFR# 5600621ISO/ANSI# ADKT 150516R-HMCat# ADKT 150516R-HM IC28Series HELIMILL
$18.81List $24.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5600621 is a ADKT 150516R-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeADKT 150516R-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius0.0630
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5450
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150516
Insert styleADKT
Iso codeADKT 150516R-HM
Length0.6140
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 150516R-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3770
