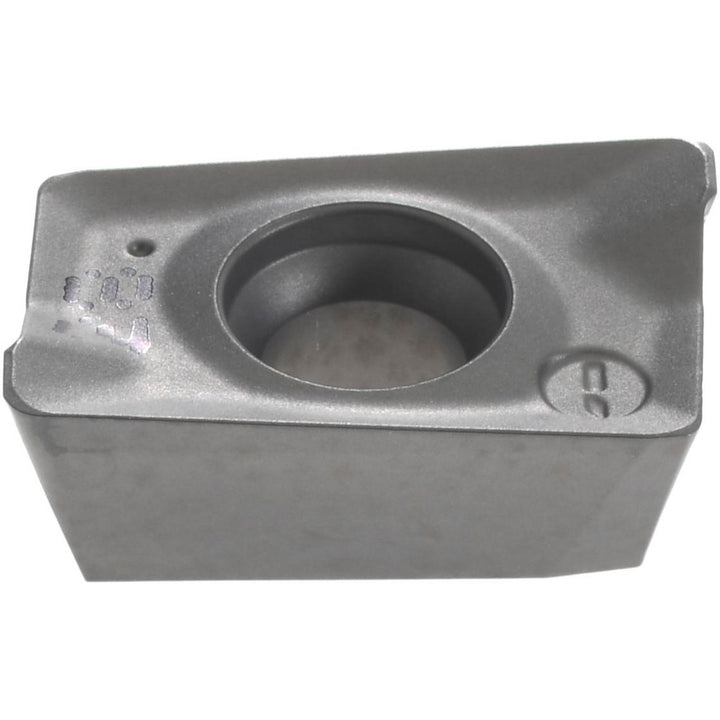

ADKT 1505PDR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600744

Iscar

ADKT 1505PDR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600744

MFR# 5600744ISO/ANSI# ADKT 1505PDR-HMCat# ADKT 1505PDR-HM IC28Series HELIMILL

$18.81List $24.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5600744 is a ADKT 1505PDR-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeADKT 1505PDR-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5410
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505PDR-HM
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505PDR-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3770
