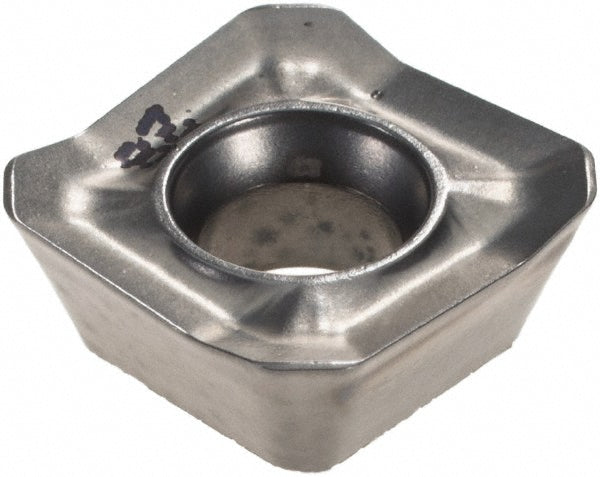

SEKT 1204AFR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600745

Iscar

SEKT 1204AFR-HM Solid Carbide Insert, Grade IC28 - Iscar 5600745

MFR# 5600745ISO/ANSI# SEKT 1204AFR-HMCat# SEKT 43AFR-HM IC28Series ISCARMILL

$18.79List $24.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5600745 is a SEKT 1204AFR-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeSEKT 43AFR-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF92ST; F45ST
Cutting edge effective length0.5079
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEKT
Iso codeSEKT 1204AFR-HM
Length0.5000
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKT 43AFR-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.2520
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in13/64
Thickness range0.2000 to 0.2200
Width in1/2
