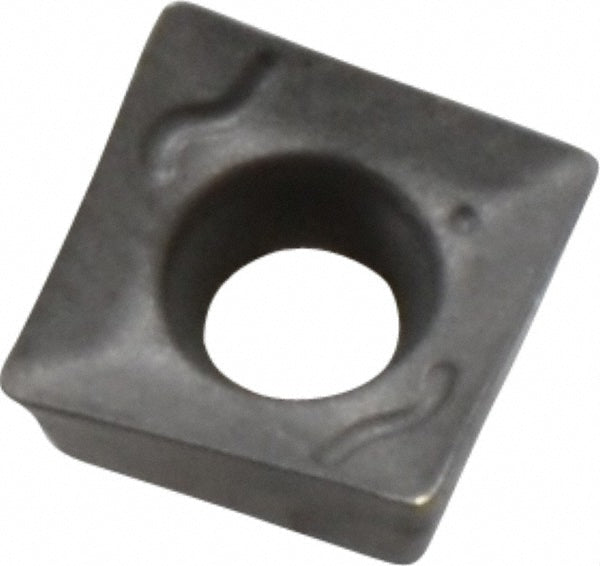

XOMT 060204-HQ Solid Carbide Insert, Grade IC28 - Iscar 5600906

MFR# 5600906ISO/ANSI# XOMT 060204-HQCat# XOMT 060204-HQ IC28Series HELIQUAD

$13.36List $17.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5600906 is a XOMT 060204-HQ solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeXOMT 060204-HQ IC28
Chip breakerHQ
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityETS; FDN-CF4; FDN; SDN; E45X; E90X
Cutting edge effective length0.2268
Cutting edge styleHelical
Included angle degree90
Inscribed circle0.2430
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleXOMT
Iso codeXOMT 060204-HQ
Length0.2425
Length range0.0000 to 0.3200
Manufacturers catalog numberXOMT 060204-HQ IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.2268
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1010
Thickness range0.1000 to 0.1250
Width0.2430
