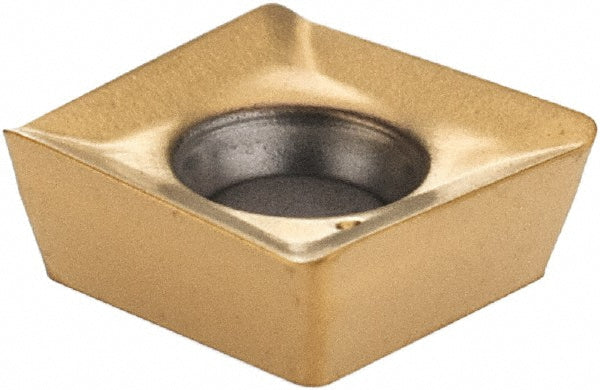

SOMT 060204-HQ Solid Carbide Insert, Grade IC250, TiCN - Iscar 5600924

Iscar

SOMT 060204-HQ Solid Carbide Insert, Grade IC250, TiCN - Iscar 5600924

MFR# 5600924ISO/ANSI# SOMT 060204-HQCat# SOMT 060204-HQ IC250Series HELIQUAD

$17.18List $22.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC250
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600924 is a SOMT 060204-HQ solid carbide indexable insert, grade IC250, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeSOMT 060204-HQ IC250
Chip breakerHQ
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityE45X; E90X
Cutting edge effective length0.2268
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size06
Insert size code060204
Insert styleSOMT
Iso codeSOMT 060204-HQ
Length0.2425
Length range0.0000 to 0.3200
Manufacturers catalog numberSOMT 060204-HQ IC250
Manufacturer gradeIC250
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Maximum depth of cut0.1570
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1010
Thickness range0.1000 to 0.1250
Width0.2425
