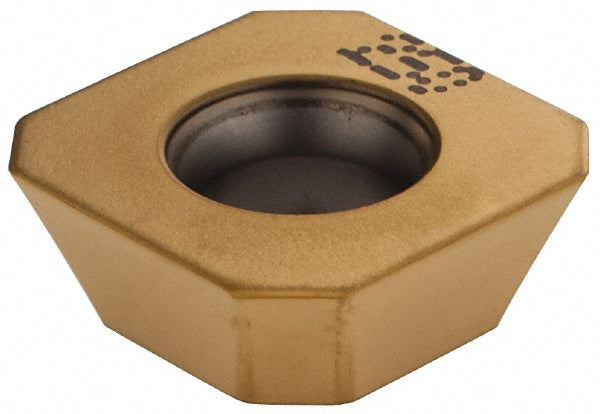

SEMW 1204AFTN Solid Carbide Insert, Grade IC250, TiCN - Iscar 5600943

Iscar

SEMW 1204AFTN Solid Carbide Insert, Grade IC250, TiCN - Iscar 5600943

MFR# 5600943ISO/ANSI# SEMW 1204AFTNCat# SEMW 43 AFTN IC250Series ISCARMILL

$22.93List $29.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC250
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5600943 is a SEMW 1204AFTN solid carbide indexable insert, grade IC250, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeSEMW 43 AFTN IC250
Chip breakerFlat Top
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEMW
Iso codeSEMW 1204AFTN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMW 43 AFTN IC250
Manufacturer gradeIC250
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in1/2
