Iscar

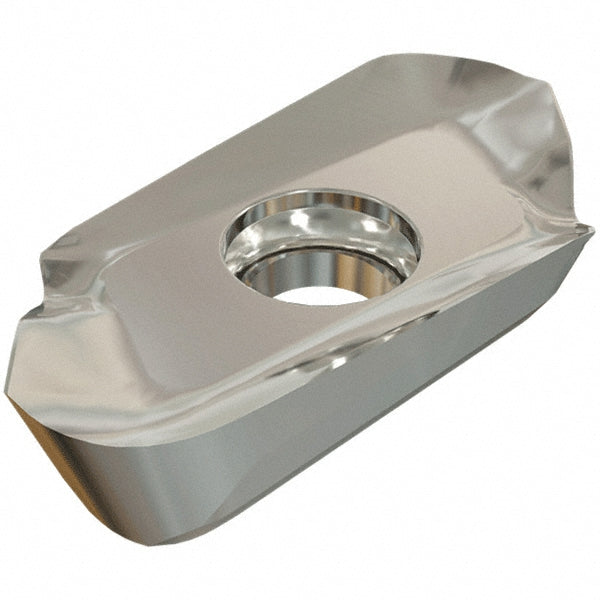

APCR 220632-HM Solid Carbide Insert, Grade IC28 - Iscar 5601130
MFR# 5601130ISO/ANSI# APCR 220632-HMCat# APCR 220632-HM IC28Series HELIALU
$54.34List $69.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC35/64
ShapeParallelogram
GradeIC28
MaterialSolid Carbide
Description
The Iscar 5601130 is a APCR 220632-HM solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.
Specifications
Ansi codeAPCR 220632-HM IC28
Chip breakerHM
Coating processUncoated
Corner radius0.1260
Cutter series compatibilityHM90-22
Cutting edge effective length0.8270
Cutting edge styleHoned
Included angle degree85
Inscribed circle in35/64
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size22
Insert size code220632
Insert styleAPCR
Iso codeAPCR 220632-HM
Length1.1380
Length range1.0000+
Manufacturers catalog numberAPCR 220632-HM IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Maximum depth of cut0.8270
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2360
Thickness range0.2350 to 0.2500
Width in35/64
