APKR 1003PDR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601221

Iscar

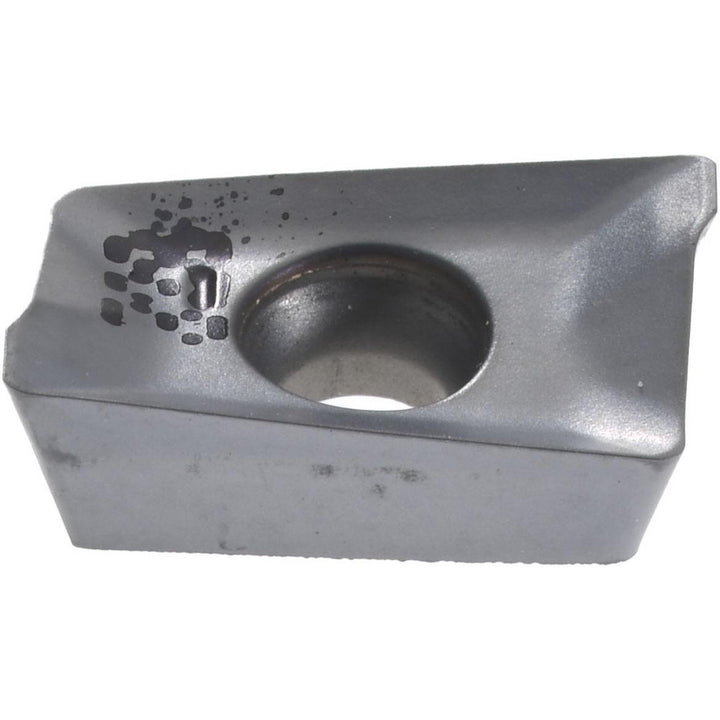

APKR 1003PDR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5601221

MFR# 5601221ISO/ANSI# APKR 1003PDR-HMCat# APKR 1003PDR-HM IC328Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601221 is a APKR 1003PDR-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKR 1003PDR-HM IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.4060
Cutting edge styleT-Land
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKR
Iso codeAPKR 1003PDR-HM
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKR 1003PDR-HM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2640
